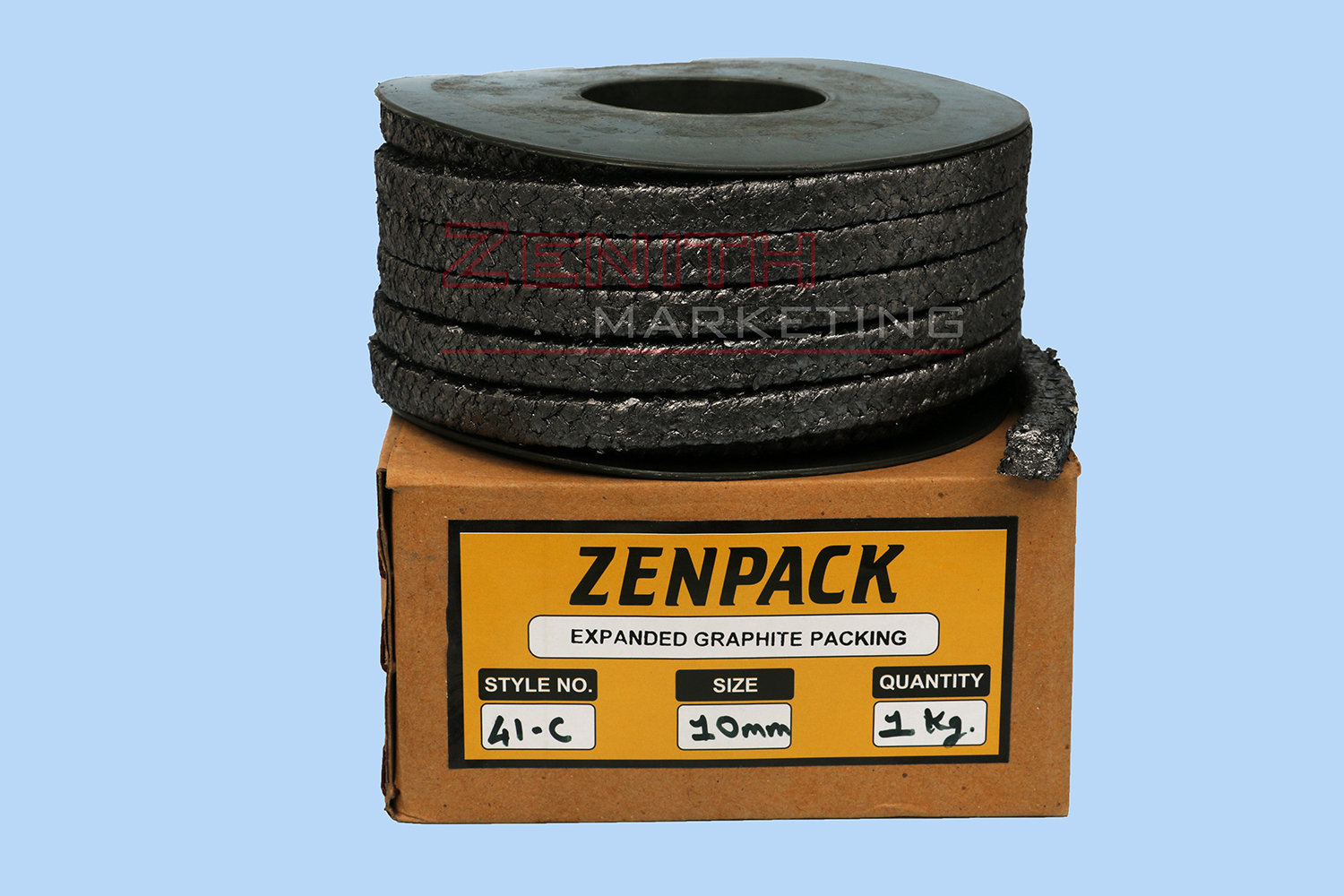

EXPANDED GRAPHITE PACKING WITH S.S. WIRE (ZENPACK STYLE 41 CSS)
Construction :
Braided packing made from pure expanded flexible graphite yarn reinforced with high strength SS wire.Application :
A specially developed packing for high pressure and high temperature applications. Reinforcement of SS wire resists extrusion under high pressure. This packing has very low co-efficient of friction and has excellent heat conductivity. Widely used in valves handling gases, oils, fuels, steam, condensate, etc. It is also used in sealing of dryers, autoclaves, etc.Standard Packing :
- From 6mm to 45mm
Service Parameters :
| Temp. (*C) | -240 to 650 oC |
| Pressure (kg/cm²) | 400 |
| pH Range | 0-14 |
| Velocity (mtrs/sec) | — |
Standard Packing :
| 6mm to 14mm | 1 Kg |
| 16mm to 19mm | 2 Kg |
| Above 19mm | 5 Kg |
* We can also supply custom size/length as per customer’s requirements
