Construction :

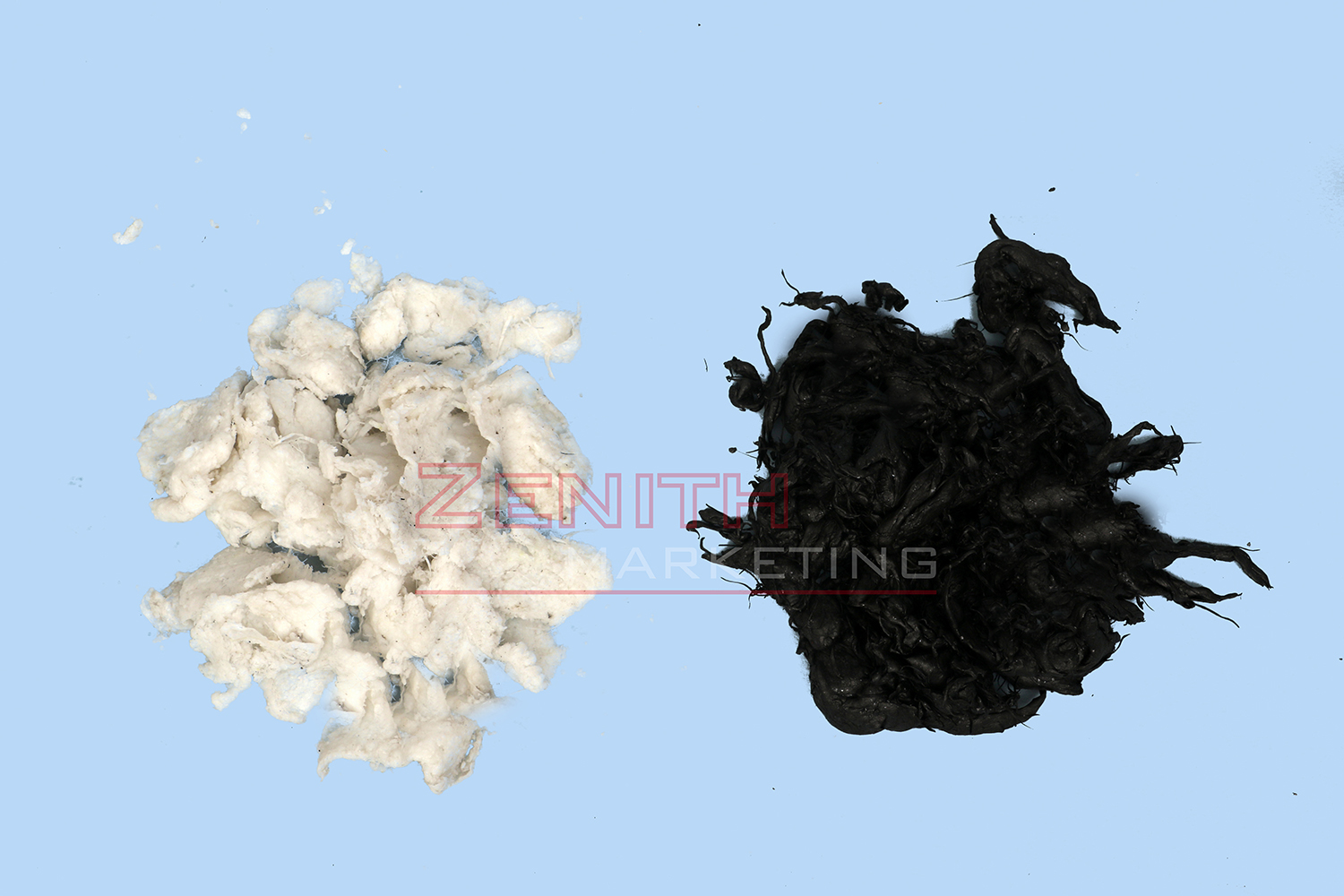

Extruded soft packing made from PTFE and high temperature lubricant. Available in square and round sections.Application :
Suitable for pumps, valves and many other static applications. Due to the chemical inertness of PTFE, it can be used with all substances. Offers excellent sealing when used in place of gasket or jointing in flanges in almost all type of industries.Available SIze :
- 3 mm - 30 mts.
- 4 mm - 20 mtrs.
- 5 mm to 8 mm - 10 mtrs.
- 10 mm to 19 mm - 5 mtrs.
Standard Packing :
| Temp.(*C) | -100 to 260 °C |
| Pressure (kg/cm²) | 100 |
| pH Range | 0-14 |
| Velocity (mtrs/sec) | 5 |
* We can also supply custom size/length as per customer’s requirements
