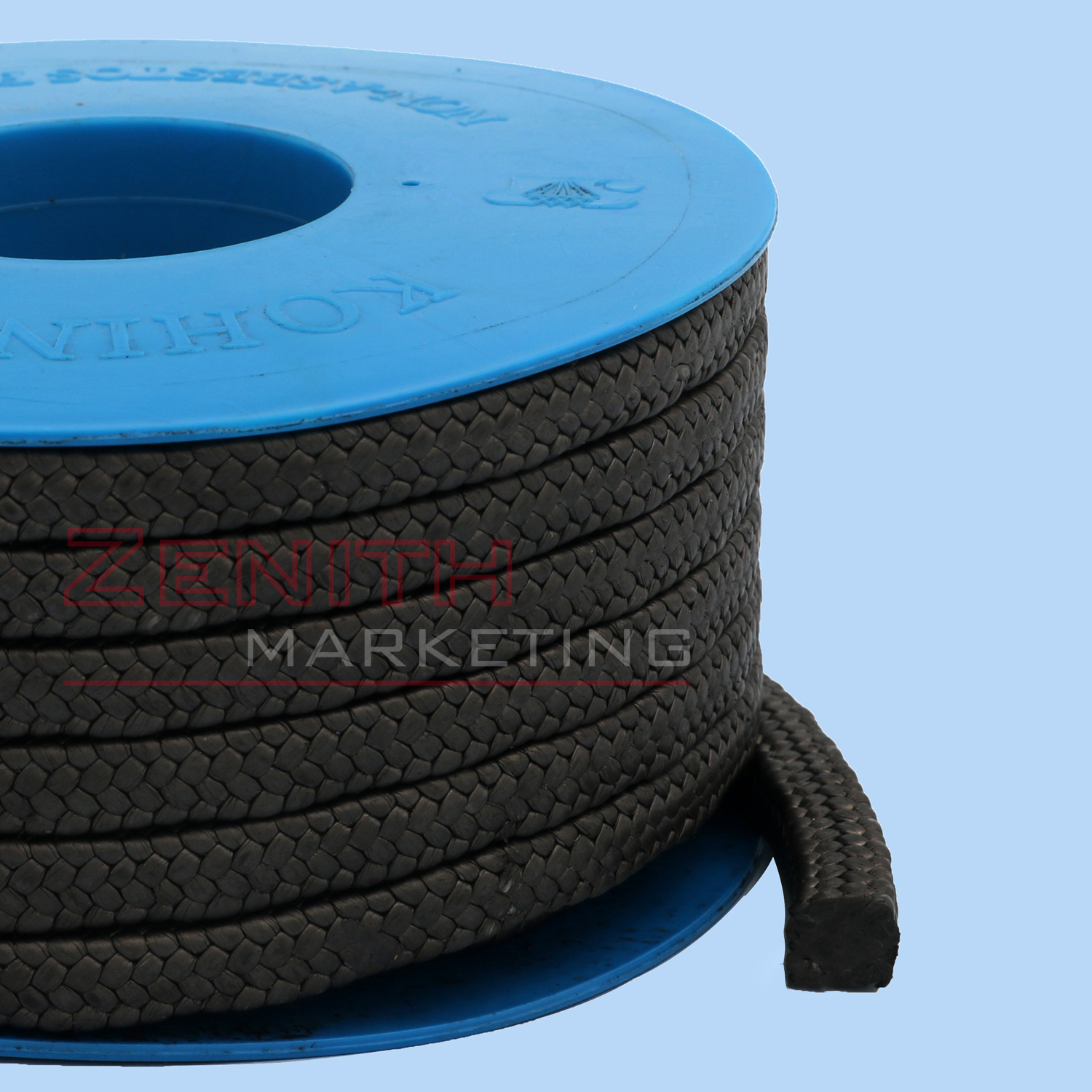

PTFE GRAPHITE PACKING (STYLE 62)
Kohinoor Non-Asbestos Packing
- PTFE UNIVERSAL PACKING (STYLE 11 & 12)
- PTFE GRAPHITE SOFT PACKING (STYLE 13)
- VALVE SEAL (STYLE 14)
- EXPANDED PTFE TAPE (STYLE 21)
- EXPANDED GRAPHITE PACKING (STYLE 41)
- EXPANDED GRAPHITE PACKING (STYLE 41SS)
- PURE CARBON PACKING (STYLE 42)
- PURE PTFE PACKING (STYLE 51)
- PURE PTFE PACKING DRY (STYLE 52)
- PTFE GRAPHITE PACKING (STYLE 61)
- PTFE GRAPHITE PACKING (STYLE 62)
- ARAMID PACKING (STYLE 71)
- PTFE PACKING GRAPHITE PACKING (STYLE 81)
- ARAMID & PTFE PACKING (STYLE 82)
- ARAMID & PTFE GRAPHITE PACKING (STYLE 83)
- PTFE & BLUE ASBESOTOS PACKING (STYLE 91)
- PTFE IMPREGNATED PACKING (STYLE 94)
- SYNTHETIC FIBRE PACKING ( STYLE 95)
- PTFE 100% PACKING
- HOLLOW AND SOLID CORE PACKING
- PTFE AND PTFE GRAPHITE PUTTY
- FDA VALVE SEAL (STYLE 14)
- FDA EXPANDED TAP (STYLE 21)
- FDA PTFE PACKING (STYLE 52)
Construction :
A special grade of PTFE bonded with quality graphite and lubricated with an inert high temperature lubricant.Application :
This packing is ideally well suited for high peripheral speeds and temperature. It can be used in pumps, valves, mixers, reactors, agitators, etc. This self-lubricating packing can be safely used in almost all chemical application including the most aggressive. Widely used in refineries, petrochemicals, fertilizers, textile industries, power plants, etc.Available SIze :
- From 3mm to 45mm.
Service Parameters :
| Temp. (*C) | -240 to 300 oC |
| Pressure (kg/cm²) | 300 |
| pH Range | 0-14 |
| Velocity (mtrs/sec) | 25 |
Standard Packing :
| 3mm to 5mm | 1/2 Kg |
| 6mm to 14mm | 1 Kg |
| 16mm to 19mm | 2 Kg |
| Above 19mm | 5 Kg |
* We can also supply custom size/length as per customer’s requirements
