Construction :

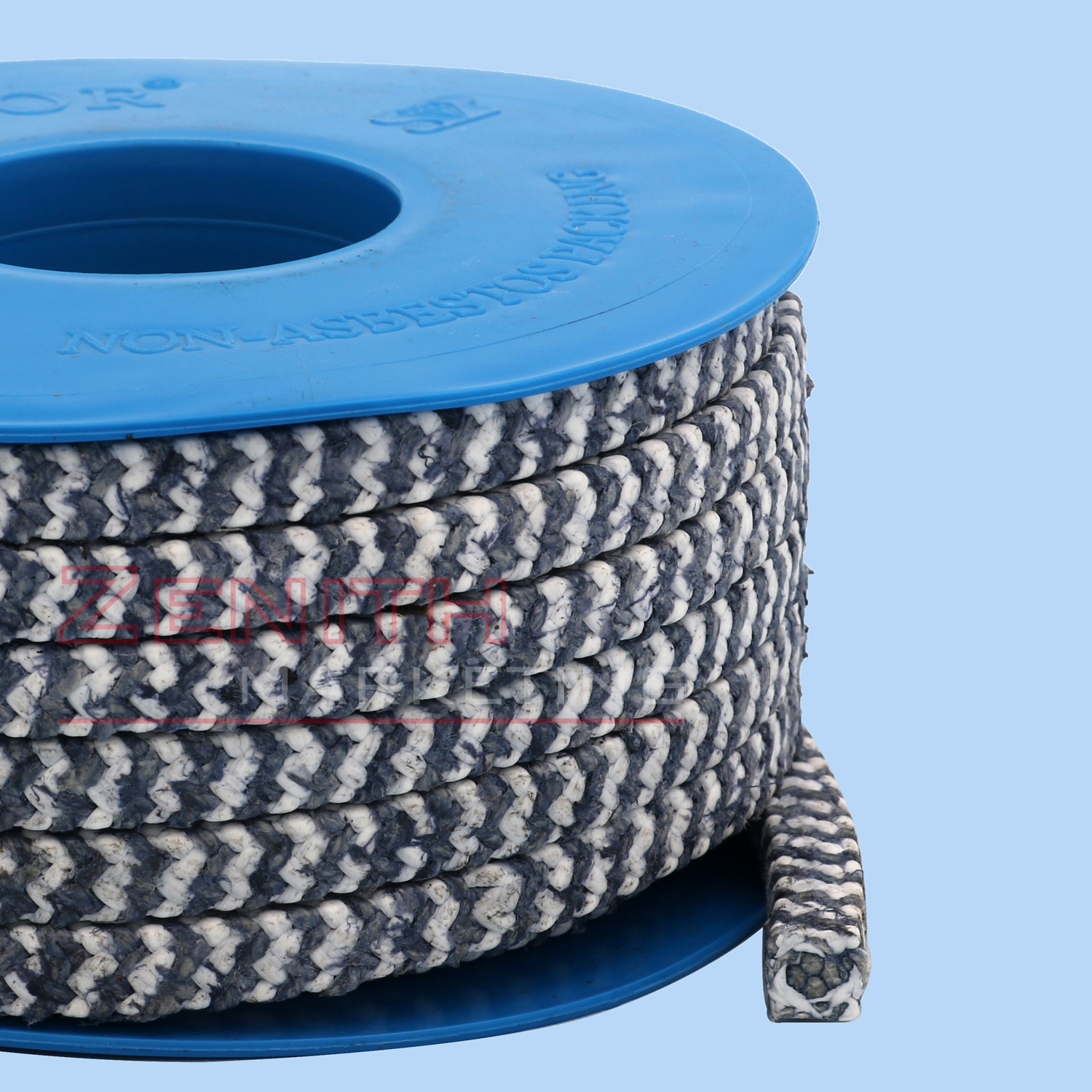

Combination Packing of alternately braided PTFE and Blue Asbestos YarnsApplication :
This Alternately braided packing resistes corrosive media,concentrated acids,chlorine,etc. It is also used against abrasive media.Available SIze :
- From 3mm to 45mm
Service Parameters :
| Temp. (*C) | -100 to 260 °C |
| Pressure (kg/cm²) | 75 |
| pH Range | 2-12 |
| Velocity (mtrs/sec) | 8 |
Standard Packing :
| 3mm to 5mm | ½ Kg |
| 6mm to 14mm | 1 Kg |
| 16mm to 19mm | 2 Kg |
| Above 19mm | 5 Kg |
* We can also supply custom size/length as per customer’s requirements
