FDA VALVE SEAL (STYLE 14)
Kohinoor Non-Asbestos Packing
- PTFE UNIVERSAL PACKING (STYLE 11 & 12)
- PTFE GRAPHITE SOFT PACKING (STYLE 13)
- VALVE SEAL (STYLE 14)
- EXPANDED PTFE TAPE (STYLE 21)
- EXPANDED GRAPHITE PACKING (STYLE 41)
- EXPANDED GRAPHITE PACKING (STYLE 41SS)
- PURE CARBON PACKING (STYLE 42)
- PURE PTFE PACKING (STYLE 51)
- PURE PTFE PACKING DRY (STYLE 52)
- PTFE GRAPHITE PACKING (STYLE 61)
- PTFE GRAPHITE PACKING (STYLE 62)
- ARAMID PACKING (STYLE 71)
- PTFE PACKING GRAPHITE PACKING (STYLE 81)
- ARAMID & PTFE PACKING (STYLE 82)
- ARAMID & PTFE GRAPHITE PACKING (STYLE 83)
- PTFE & BLUE ASBESOTOS PACKING (STYLE 91)
- PTFE IMPREGNATED PACKING (STYLE 94)
- SYNTHETIC FIBRE PACKING ( STYLE 95)
- PTFE 100% PACKING
- HOLLOW AND SOLID CORE PACKING
- PTFE AND PTFE GRAPHITE PUTTY
- FDA VALVE SEAL (STYLE 14)
- FDA EXPANDED TAP (STYLE 21)
- FDA PTFE PACKING (STYLE 52)

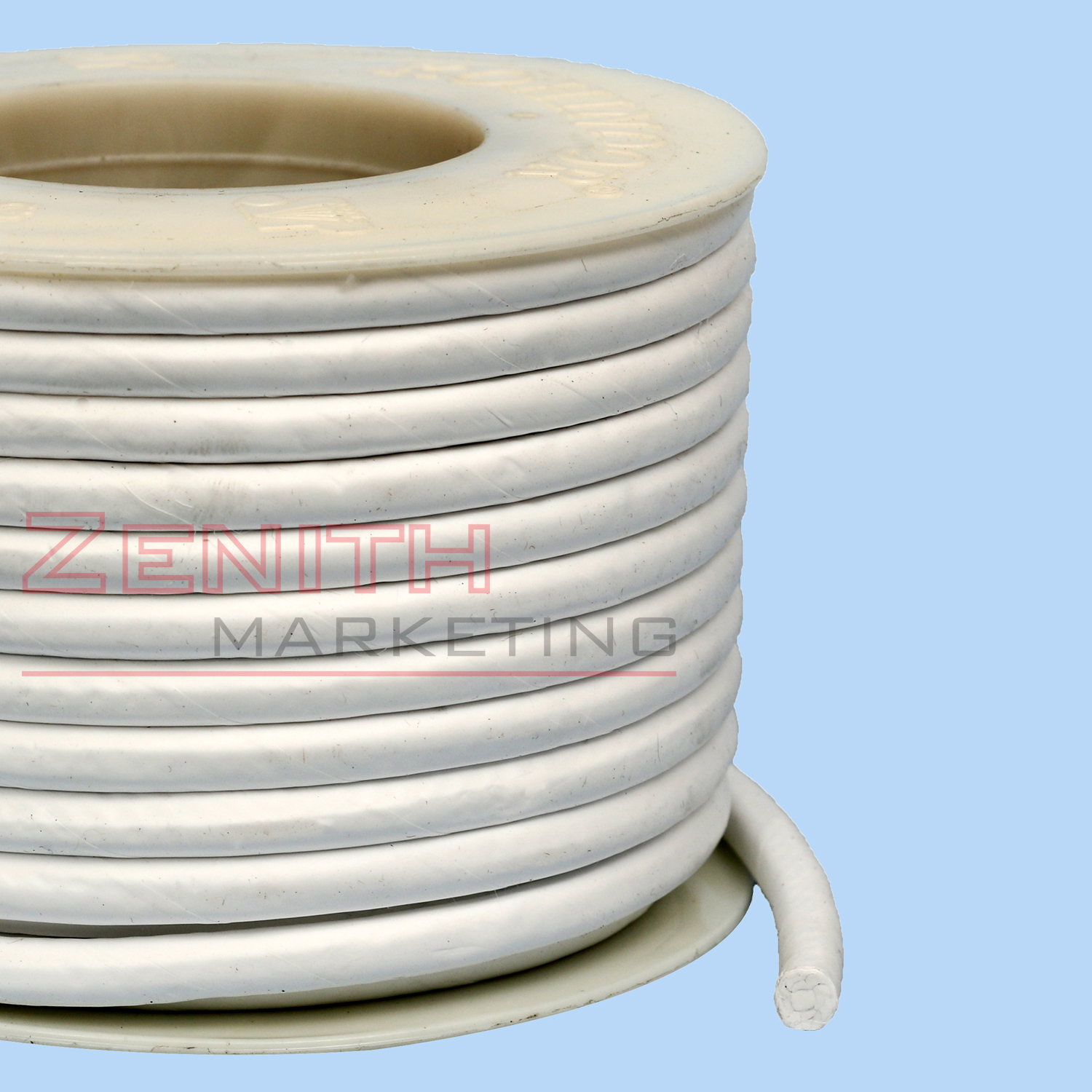

Construction :
Valve Seal is provided with double construction of 100% PTFE core with spiral wrapping of PTFE tape.Application :
The core fills all voids and confirms to uneven spindles and flanges while the spiral wrapping of PTFE tape prevents extrusion at both ends of the spindle. It is widely recommended for use on valves in various industries for obtaining practically Zero Leakage. Can also be used in place of gasket in flanged joint.Available SIze :
- 3mm to 5mm : ½ Kg.
- 6mm to 12mm : 1 Kg.
Service Parameters :
| Temp. (*C) | -100 to 260 oC |
| Pressure (kg/cm²) | 200 |
| pH Range | 0-14 |
| Velocity (mtrs/sec) | — |
* We can also supply custom size/length as per customer’s requirements
