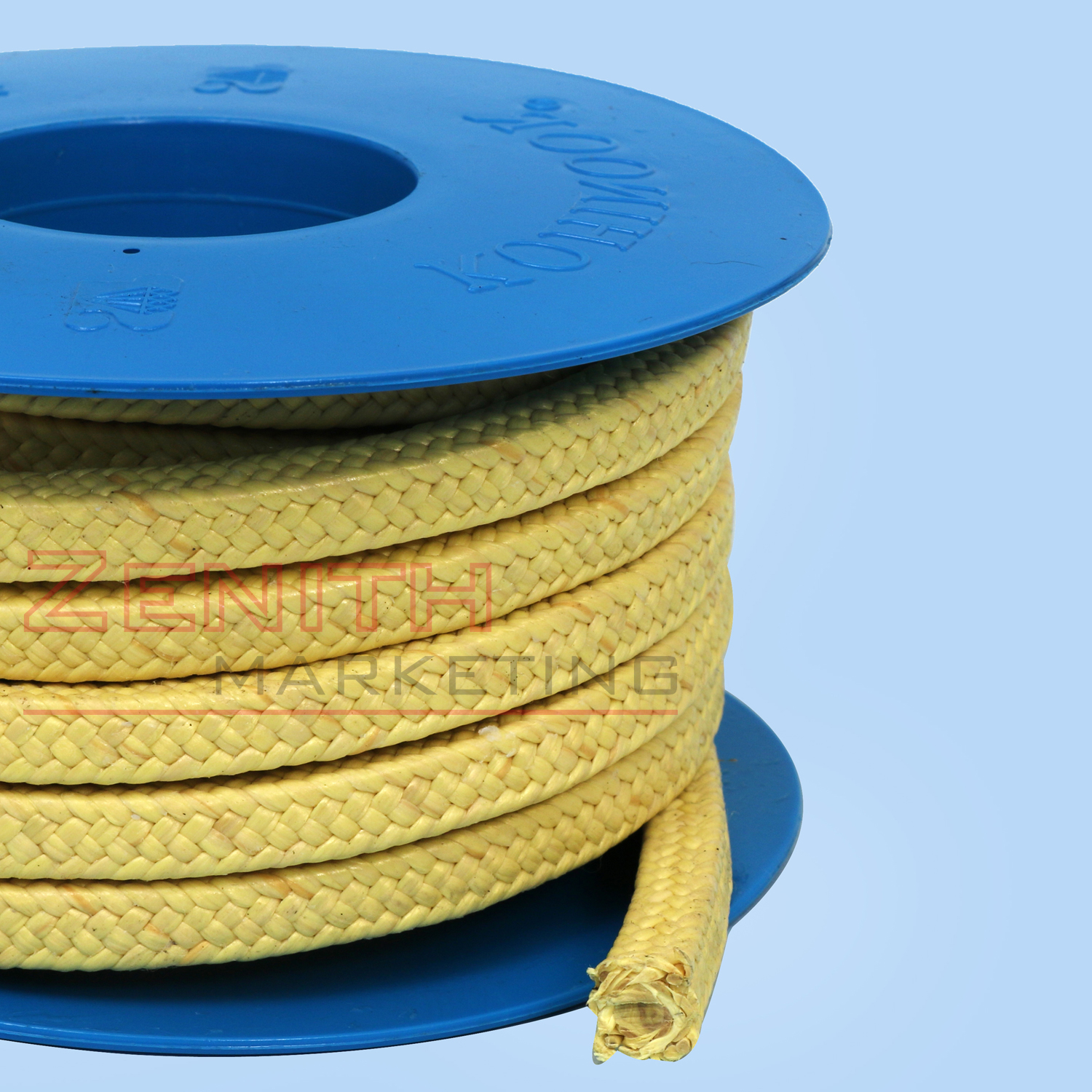

ARAMID PACKING (STYLE 71)
Kohinoor Non-Asbestos Packing
- PTFE UNIVERSAL PACKING (STYLE 11 & 12)
- PTFE GRAPHITE SOFT PACKING (STYLE 13)
- VALVE SEAL (STYLE 14)
- EXPANDED PTFE TAPE (STYLE 21)
- EXPANDED GRAPHITE PACKING (STYLE 41)
- EXPANDED GRAPHITE PACKING (STYLE 41SS)
- PURE CARBON PACKING (STYLE 42)
- PURE PTFE PACKING (STYLE 51)
- PURE PTFE PACKING DRY (STYLE 52)
- PTFE GRAPHITE PACKING (STYLE 61)
- PTFE GRAPHITE PACKING (STYLE 62)
- ARAMID PACKING (STYLE 71)
- PTFE PACKING GRAPHITE PACKING (STYLE 81)
- ARAMID & PTFE PACKING (STYLE 82)
- ARAMID & PTFE GRAPHITE PACKING (STYLE 83)
- PTFE & BLUE ASBESOTOS PACKING (STYLE 91)
- PTFE IMPREGNATED PACKING (STYLE 94)
- SYNTHETIC FIBRE PACKING ( STYLE 95)
- PTFE 100% PACKING
- HOLLOW AND SOLID CORE PACKING
- PTFE AND PTFE GRAPHITE PUTTY
- FDA VALVE SEAL (STYLE 14)
- FDA EXPANDED TAP (STYLE 21)
- FDA PTFE PACKING (STYLE 52)
Construction :
High strength organic aramid (aromatic polyamide) synthetic yarn impregnated with PTFE and lubricated with a special high temperature lubricant.Application :
High strength and its abrasion resistance of the yarn makes it ideal for use with abrasive sand, slurry, gritty media, sludge and sewerage handling equipments. It is used in pulp and paper, chemical, petrochemicals, pharmaceuticals, sugar, food industries, power plants, etc. Used as anti extrusion rings with other packing.Available SIze :
- From 3mm to 45mm .
Service Parameters :
| Temp. (*C) | -240 to 260 oC |
| Pressure (kg/cm²) | 250 |
| pH Range | 2-12 |
| Velocity (mtrs/sec) | 12 |
Standard Packing :
| 3mm to 5mm | 1/2 Kg |
| 6mm to 14mm | 1 Kg |
| 16mm to 19mm | 2 Kg |
| Above 19mm | 5 Kg |
* We can also supply custom size/length as per customer’s requirements
